A database is an integral part of everyday life for many businesses. Keeping track of the data stored in databases is a key part of the process, and MySQL BinLog can be an invaluable tool in this regard. In this practical guide, we will explore the basics of MySQL BinLog, and how they can be used for maximum efficiency. So, if you're looking for a way to get the most out of your database, read on!
What is MySQL BinLogs?
MySQL Binary Log (BinLog) is a record of all changes made to a MySQL database. It serves as an audit trail of changes and can be used for various purposes, such as data recovery, replication, and database monitoring. BinLogs are created by the MySQL server and contain a record of all SQL statements that modify data. They consist of a sequence of events, each representing a change made to the database. When the user makes a query, the database server stores a binary log of the query in the BinLogs. This log is composed of one or more entries, each containing the query's details, including the time the query was executed, the user who initiated the query, the database which was affected, the query itself, and the results.
BinLogs are written in a binary format and are not meant to be read directly by humans. However, they can be viewed and analysed using tools such as MySQL Binlog, which is included in the MySQL distribution. BinLogs can be enabled or disabled by the database administrator, and the level of detail recorded in the BinLogs can be controlled using various configuration options. MySQL BinLogs is a powerful tool for database administrators and developers, providing a wealth of information and functionality to improve MySQL databases' management and performance.
MySQL BinLogs Purposes
MySQL BinLog is an essential component of any well-organized database system. They are used for replication and data recovery purposes, ensuring your data is up-to-date, secure, and recoverable. In this blog post, we discuss the purposes of MySQL BinLogs and why they are so important.
1) Replication
MySQL BinLog is used to replicate data from one server to another. This is especially useful when you have multiple servers in a cluster, as it allows for data to be synchronised between them. The replication process is done by recording binlog statements, which can then be sent to other servers for replication. Binlog statements contain information about the data that has been changed and stored in the database. This ensures consistency across all servers in a cluster and helps to provide a more reliable system.
2) Data Recovery
MySQL BinLogs are also used for data recovery purposes. When data is lost due to some type of issue, such as system crashes or power outages, binlogs can be used to restore lost data. The Binlogs store information on all changes made to the database, allowing for the restoration of data that was lost. This is especially useful in cases where the data being lost is important and cannot be easily recreated. If you’re looking to get the most out of your database system, take advantage of the power of Binlogs.
Use cases of MySQL BinLogs
MYSQL BinLogs is an important component of a secure and optimised MySQL database. They are used in various situations, ranging from simple backups to more complex replication setups. Here are some common use cases for MYSQL BinLogs:
1. Backups
MYSQL BinLogs are used to record every change made to a database, allowing for easy restoration in the event of a disaster or even just to keep a history of changes. This can be useful for keeping track of changes over time or for restoring a database to a previous state.
2. Replication
MySQL BinLogs are essential for replication between multiple databases. By keeping track of changes made to one database, the other databases can be kept up to date with the most recent changes. This is an important tool for keeping data consistent across multiple databases.
3. Optimization
By tracking the changes made to a database, MySQL BinLogs can help to identify areas of the database which may be slowing down performance. Identifying these areas makes it possible to optimise the database for better performance.
4. Auditing
MySQL BinLogs can audit changes made to a database. This can help track down any suspicious activity on the database and identify potential security risks.
5. Disaster Recovery
MYSQL BinLogs can help recover a database in the event of a disaster. Restoring the database to its previous state makes it possible to regain access to the data lost in the incident.
6. Auditing and compliance
By tracking and recording all changes to your database, BinLogs can help you meet auditing and compliance requirements by providing a complete data history.
7. Performance
Enabling BinLogs can improve the performance of your MySQL server by allowing it to write changes to the BinLog files rather than updating the data files directly. This can reduce the amount of disk I/O required and improve overall performance.
8. Troubleshooting
MySQL binlogs can also be used to troubleshoot your database. If you are having an issue with your database, you can use the binlogs to see what changes were made to the database and when. This can help you identify and fix the issue quickly.
9. Debugging
By analysing the contents of the BinLog files, you can troubleshoot issues with your database and identify the cause of any problems. This can be especially useful if you are experiencing issues with replication, as you can use BinLogs to identify and resolve any issues with the replicated data.
10. Data synchronisation
You can use BinLogs to synchronize data between different MySQL servers or databases. This can be useful if you need to keep multiple copies of your data in sync, such as in a disaster recovery scenario.
These are just a few of the many uses of MYSQL BinLogs. They are essential for keeping a database secure, optimized, and backed up and for auditing and disaster recovery. With the right setup, MYSQL BinLogs can be valuable for any database administrator.
Benefits of MySQL BinLogs
MySQL BinLogs is a powerful tool for database administrators and developers. They provide an effective way to track, monitor, and analyze changes in a MySQL database. With BinLogs, you can quickly identify and resolve issues, perform auditing and troubleshooting, and maintain a secure and healthy database. In this section, we’ll discuss the benefits of MySQL BinLogs and how it can help you improve your database performance.
1. Maintain Database Integrity:
MySQL BinLogs is a great way to ensure that your database remains consistent. Once a transaction is committed, BinLogs capture the exact data changes that occurred. This helps you keep an audit trail of all database changes, allowing you to quickly identify any discrepancies between the data and the expected state.
2. Monitor Performance:
MySQL BinLogs also provide an effective way to monitor the performance of your database. They record query execution times, query performance, and slow queries. This helps you identify any problems quickly and rectify them before they become major issues.
3. Troubleshoot Issues:
BinLogs provides an invaluable tool for troubleshooting. They allow you to trace the exact changes that lead to a problem, so you can quickly identify the root cause and rectify the issue.
4. Manage Security:
MySQL BinLogs also provide an effective way to protect your database from malicious attacks. They record information such as user logins, failed logins, and attempts at privilege escalation. This helps ensure that only authorized users can access your data.
5. Automate Tasks:
MySQL BinLogs can also be used to automate tasks. For example, you can create scripts that monitor and alert you to any problems or changes in your database. This can help you reduce manual labor and improve database efficiency. MySQL BinLogs provide many benefits to database administrators and developers. They allow you to maintain database integrity, monitor performance, troubleshoot issues, manage security, and automate tasks. If you’re looking for a way to improve your database performance, MySQL BinLogs is a must-have tool.
MySQL BinLogs Architecture
MySQL's Binlogs architecture is an integral part of any database server. Binlogs store data changes and transactions that have occurred on a MySQL server. This architecture is a critical part of the infrastructure of any MySQL database and understanding it is important to maintain system integrity and reliability. At the most basic level, binlogs are files that store a record of every transaction that occurs on a MySQL server. Whenever a query is executed, the changes made by that query are recorded in the binlogs. This architecture is crucial for recovering from server crashes and other potential catastrophes.
MySQL Binlogs are divided into two main types: binary logs and relay logs. Binary logs store the changes that take place in the database, while the relay logs store the SQL commands that were executed. They are stored in a special format that is optimized for efficient recovery. This means that it is quite efficient to recover from a crash, as the data is stored in an organized manner. It also allows for the replication of data across multiple servers. On the other hand, the relay logs store the executed SQL commands. This helps with debugging and auditing, as it allows you to track the source of any changes that have been made to the database.

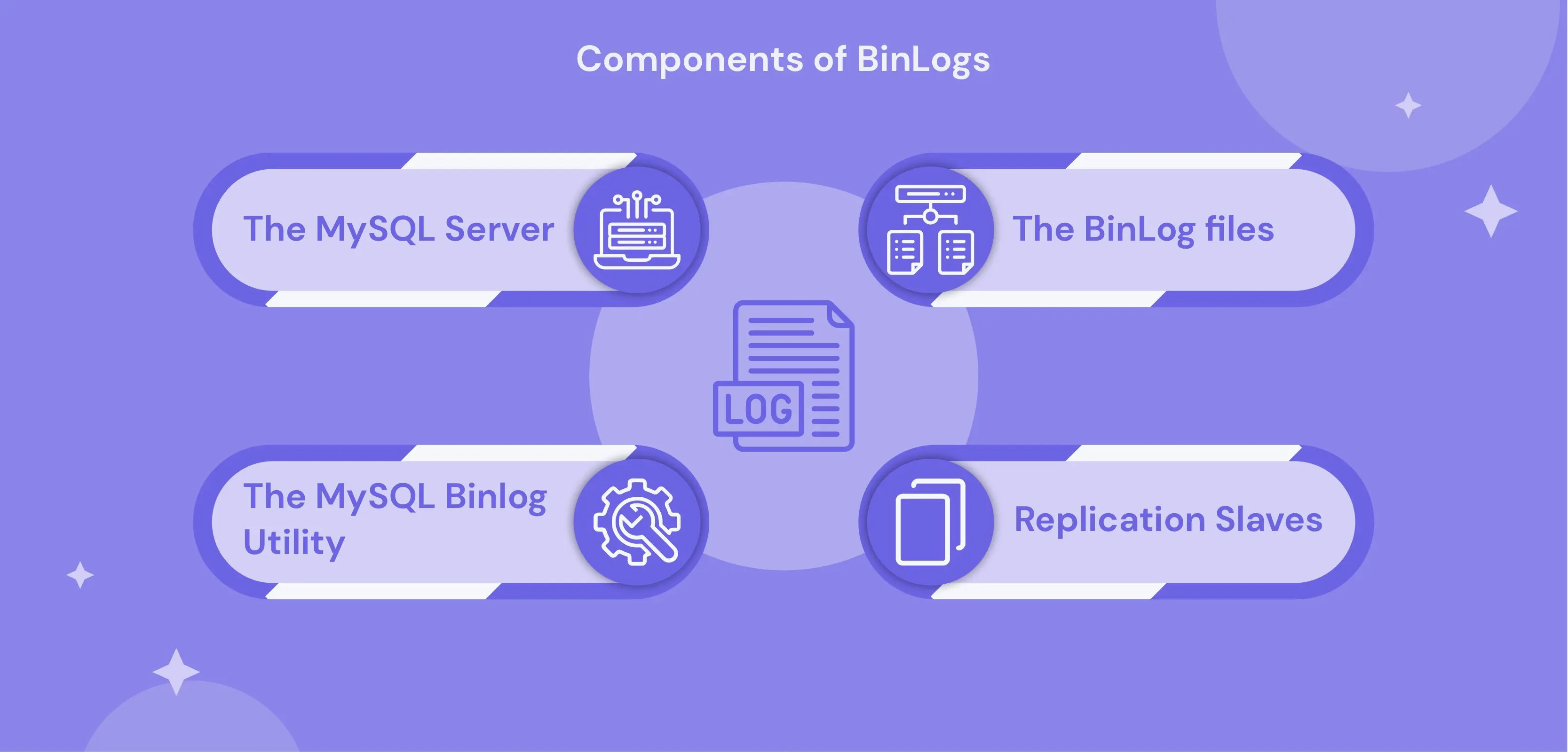

Components of BinLogs
The MySQL BinLogs architecture is a system for recording and replicating changes made to a MySQL database. It consists of the following components:
1) The MySQL server
This main component generates BinLog events and writes them to the BinLog files. The MySQL server is responsible for executing SQL statements and recording the changes made to the database in the BinLogs. It can be configured to write different events to the BinLogs, such as data updates, structure modifications, and user actions. The server also controls the management and rotation of the BinLog files.
2) The BinLog files
These files store the BinLog events written by the MySQL server. BinLog files are created in a binary format and are not meant to be read directly by humans. The MySQL server creates a new BinLog file when the current file reaches a certain size or when the database administrator manually rotates it. BinLog files are given a unique sequence number, and each event in the BinLog is assigned a position within the file.
3) The MySQL Binlog utility
This command-line tool can view and analyze the contents of BinLog files. The MySQL Binlog utility can extract the SQL statements contained in the BinLog events or display the events in a human-readable format. It can also be used to apply the events contained in the BinLogs to a MySQL database, allowing the database to be synchronized with the state of the BinLogs.
4) Replication slaves
These are MySQL servers that replicate data from a master server using the BinLogs. Replication is a process by which data is copied from a master server to one or more slave servers, allowing the slaves to maintain a copy of the master's data. Replication can be used for various purposes, such as scaling read operations, improving availability, and creating backups. The slaves connect to the master and retrieve the BinLog events, which they then execute on their databases to keep them in sync with the master.
MySQL BinLogs architecture provides a flexible and powerful mechanism for recording and replicating database changes. It is an essential component of the MySQL database management system and is widely used in various applications and scenarios.

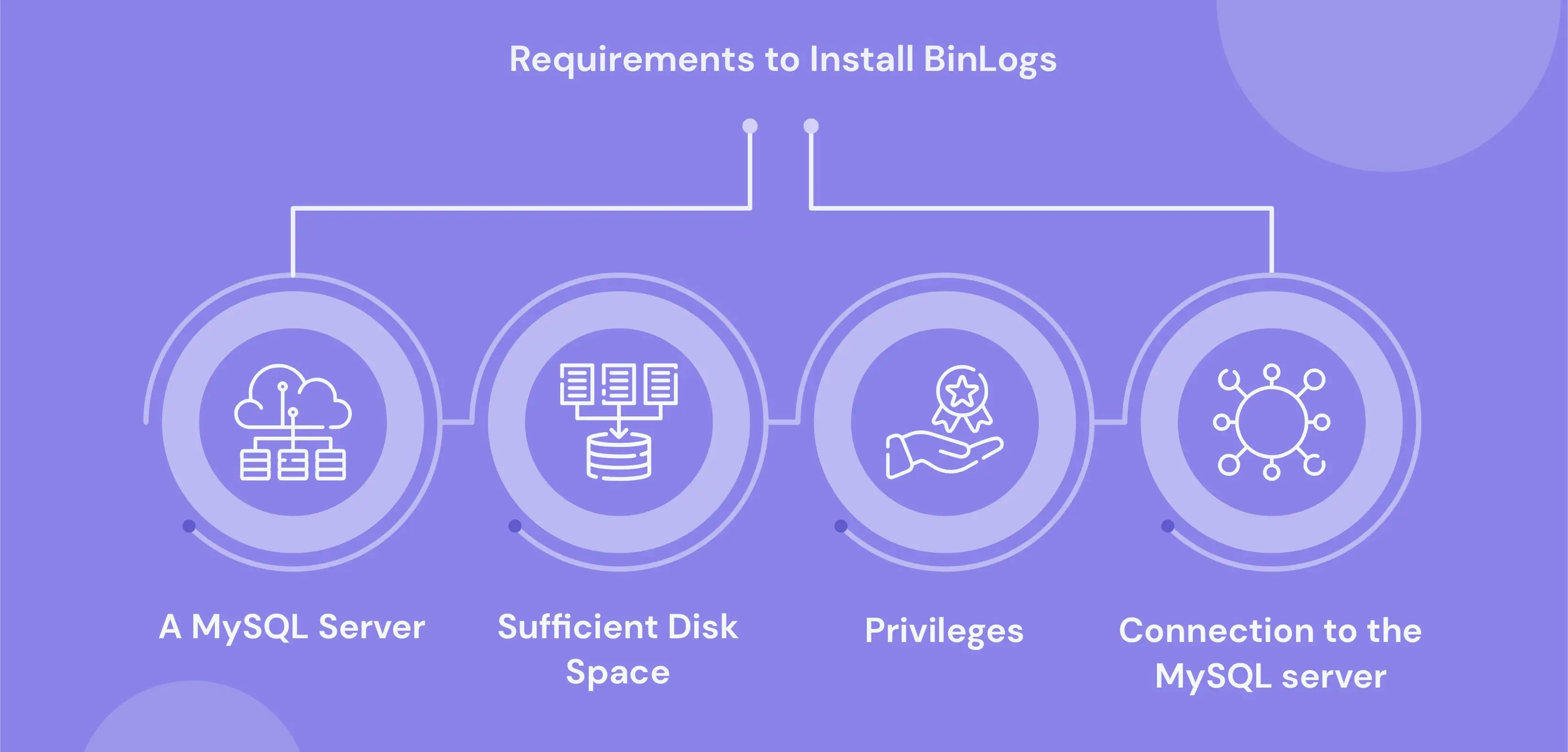

Requirements to Install BinLogs
To install MySQL BinLogs, you will need the following:
1) A MySQL server
BinLogs are integral to the MySQL database management system, so you need to have a MySQL server installed. You can download the MySQL server from the official MySQL website or install it using a package manager such as apt-get (for Ubuntu) or yum (for CentOS).
2) Sufficient disk space
BinLogs can consume a significant amount of disk space, depending on the amount of activity in your database. Make sure you have sufficient free disk space to accommodate the BinLogs.
3) Privileges
You need the privileges to modify the MySQL server configuration and create or delete BinLog files.
4) Connection to the MySQL server
You will need to have access to the MySQL server, either locally or remotely, to enable or disable BinLogs and view or analyze the contents of the BinLog files. Once you have these requirements in place, you can proceed with the installation and configuration of MySQL BinLogs.
How to Access MySQL Binary Logs in Different OS
The MySQL Binlog utility can download or stream binary logs from Amazon RDS for MySQL DB instances. These logs can then be replayed using the MySQL utility or viewed using MySQL Binlog.
1. Amazon RDS instance
To access the binary logs, you will need to specify the host, port, and user information for the Amazon RDS instance and the name of the binary log file you wish to access.
{{bb1="/components"}}
Specify the names of one or more binary log files. To get a list of the available logs, use the SQL command SHOW BINARY LOGS.
To stream the binary log files, specify the --stop-never option.
Here is an example of how to use the MySQL Binlog utility to access binary logs from an Amazon RDS instance:
For Linux, macOS, or Unix:
{{bb2="/components"}}
For Windows:
{{bb3="/components"}}
How can Boltic help in working with MySQL BinLogs?
Boltic is a no-code data transformation tool that can help with working with MySQL BinLogs. Here are a few ways that Boltic might be able to assist with working with BinLogs:
1. Extracting data from BinLogs:
Boltic can extract data from BinLogs and transform it into a more usable format, such as a CSV or JSON file. This can be useful if you analyze or process the data in the BinLogs.
2. Setting up replication:
Boltic can set up and manage replication between MySQL servers using BinLogs. This could be faster and more efficient than setting up replication manually.
3. Data recovery:
Boltic can be used to recover data from BinLogs and restore it to a MySQL database. This could be faster and more efficient than manually applying the changes in the BinLogs using MySQL Binlog.
4. Data synchronization:
Boltic can synchronize data between different MySQL servers or databases using BinLogs. This could be useful if you need to keep multiple copies of your data in sync, such as in a disaster recovery scenario.
Overall, Boltic can help with working with MySQL BinLogs by providing an easy-to-use interface for processing and manipulating the data in these log files.
Benefits of using Boltic
There are several potential benefits of using Boltic, a no-code data transformation tool:
1) Ease of use: Boltic is designed to be easy to use, even for users with little or no coding experience. This can make it a good choice for users who need to perform data transformations but need more time or resources to learn a programming language.
2) Fast deployment: Boltic can be deployed quickly, as it does not require any coding or complex setup. This can be useful if you need to get up and running with a data transformation solution quickly.
3) No coding required: Boltic does not require users to have any coding experience or knowledge as a no-code tool. This can be a good option for users who are uncomfortable with programming or do not have the time or resources to learn a new programming language.
4) Scalability: Boltic can potentially handle large volumes of data, making it a good choice for users who need to process and transform large datasets.
5) Customization: Boltic allows users to customize their data transformations using a variety of pre-built blocks and options. This can be useful if you need to perform specific types of transformations or if you have specific requirements for your data.
6) Integration with other tools: Boltic can be integrated with other tools and platforms, such as databases, cloud storage services, and data visualization tools. This can be useful if you need to work with data from multiple sources or if you need to analyze and visualize your data in a particular way.
7) Automation: Boltic can be used to automate data transformations, allowing you to schedule and execute transformations on a regular basis. This can be useful if you need to keep your data up-to-date or if you need to perform transformations regularly.
8) Collaboration: Boltic allows users to collaborate on data transformations and share their work with others. This can be useful if you are working on a team or if you need to share your data transformations with others.
Boltic may be a good choice for users who need to perform data transformations but do not have the time or resources to learn a programming language.
Working With MySQL BinLogs
1. Enabling A MySQL BinLog & Its Verification
To enable MySQL BinLogs, you will need to modify the MySQL server configuration and specify the location and name of the BinLog files. This can be done by adding the following lines to the my.cnf configuration file:
{{bb4="/components"}}
2. Determining the current BinLogs
You can use the "SHOW BINARY LOGS" command to view a list of the current BinLog files. This command will show you the name and size of each BinLog file and its starting and ending positions.
3. Retrieving contents of a MySQL BinLog
You can use the "MySQL Binlog" utility to view the contents of a BinLog file. This utility can extract the SQL statements contained in the BinLog events and display them in a human-readable format.
4. Using BinLogs to get entries of a particular database
You can use the "MySQL Binlog" utility to filter BinLog events by the database. This can be useful if you want to view only the events related to a specific database or if you want to exclude events from certain databases.
5. Disabling MySQL BinLogs for recovery
Sometimes, you may need to disable BinLogs to recover a MySQL database. To disable BinLogs, modify the MySQL server configuration and set the "log_bin" variable to "OFF." You can then restart the MySQL server to apply the changes.
6. Setting up the binary log format
You can use the "binlog_format" variable to control the format of the BinLog events written by the MySQL server. There are three possible values for this variable: "STATEMENT", "ROW," and "MIXED."
The "STATEMENT" format logs the SQL statements that caused the changes to the database. This is the most efficient option, but it needs to provide more detail to recreate the exact state of the database.
The "ROW" format logs the individual row changes caused by the SQL statements. This provides more detailed information but can be less efficient than the "STATEMENT" format.
The "MIXED" format combines the "STATEMENT" and "ROW" formats, logging both the SQL statements and the individual row changes.
You can set the "binlog_format" variable in the MySQL server configuration file or use the "SET" statement.
7. Specific entry extraction in BinLogs
You can use the "MySQL Binlog" utility to extract specific events from a BinLog file. This can be useful if you are looking for a specific event or want to exclude certain events from the output.
8. MySQL BinLog retention
By default, MySQL will retain BinLogs until they are no longer needed for replication or recovery purposes. You can use the "expire_logs_days" variable to specify the number of days that BinLogs should be retained.
You can also use the "PURGE BINARY LOGS" statement to delete old BinLog files manually. It is important to carefully manage the retention of BinLogs to ensure that you have sufficient disk space and to avoid accumulating unnecessary log files.
Troubleshooting Common Problems
Here are some common problems that you may encounter when working with MySQL BinLogs, and some suggestions for troubleshooting them:
1) BinLogs are not being written
It could be due to various issues if you have enabled BinLogs but are not being written to the designated file. Ensure that the MySQL server has permission to write to the BinLog file, and check the MySQL error log for any messages related to the BinLogs.
2) BinLogs are filling up the disk
If the BinLog files are growing too large, it could cause problems with disk space or performance. You can use the "expire_logs_days" variable to specify a retention period for BinLogs, or the "PURGE BINARY LOGS" statement to manually delete old logs.
3) MySQL Binlog is not working
If you are having issues using the MySQL Binlog utility, ensure that you have the correct path to the BinLog file and the necessary permissions to read it. You can also check the MySQL error log for any messages related to the MySQL Binlog utility.
4) Replication is not working
If you are using BinLogs for replication and it is not working as expected, there could be various issues. Check the MySQL error log on both the master and slave servers for any replication-related messages. You can also use the "SHOW SLAVE STATUS" command to view the status of the replication process and troubleshoot any issues.
5) Data recovery is not working
If you are using BinLogs to recover data and it is not working as expected, make sure that you have the correct BinLog files and that you are using the correct MySQL Binlog options. You can also check the MySQL error log for any messages related to data recovery.
6) Check for Drivers and Software Updates
Outdated drivers and software can cause various problems, so ensure that all of your drivers and software are up-to-date. Most devices will check for updates automatically, but you can also check manually to ensure you’re running the latest version.
By understanding and troubleshooting common problems with MySQL BinLogs, you can effectively use this feature to manage and protect your data.
Security considerations for MySQL BinLogs
However, like all data, BinLogs can be vulnerable to attack. Hackers can use BinLogs to gain access to sensitive data and even launch malicious attacks on the database. Therefore, it’s crucial to ensure that your BinLogs are secure and carefully monitored. In this article, we’ll discuss some of the security considerations you should consider when it comes to MySQL BinLogs.
1. Encryption
One of the best ways to protect your BinLogs is to use encryption. This will make it much more difficult for attackers to access the information stored in the logs. You should use a strong encryption algorithm and ensure that the encryption keys are safe.
2. Monitoring
You should also monitor your BinLogs regularly. This will help you identify any suspicious activity, such as unauthorized access attempts or attempts to modify the logs. You can also use this data to detect patterns of behavior that may indicate a security breach.
3. Access Control
You should also carefully control who has access to the BinLogs. Ensure that only trusted personnel have access to the logs and that any changes are made securely.
4. Logging
It’s also important to ensure that you’re logging as much information about your BinLogs as possible. This will enable you to track any suspicious activity and investigate potential security breaches more effectively.
5. Backup
Finally, always ensure that you’re making regular backups of your BinLogs. These backups can be used to restore the logs in case of a security breach or an accidental deletion of the BinLogs.
By following these security considerations, you can ensure that your MySQL BinLogs are secure and that any potential security threats are identified and addressed quickly and effectively. Keeping your BinLogs secure is essential for the security of your database and your business.
Conclusion
MySQL BinLogs is a powerful tool for replication, data recovery, and other purposes. By enabling and configuring BinLogs in MySQL, you can track and record changes to your database, allowing you to replicate data to other servers or recover from data loss. You can use the MySQL Binlog utility to access and analyze the contents of the BinLog files, and you can control the format and retention of the logs to meet your needs. By understanding how to work with MySQL BinLogs, you can effectively use this feature to manage and protect your data.
